E-2 Off Road 12.00-20 1500×600-635
Features

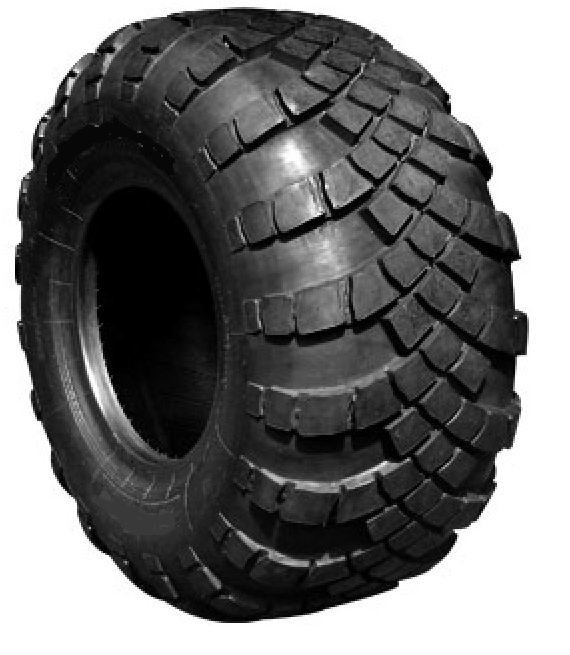

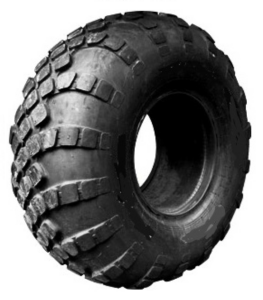

E-2 Off Road
Applicable for offroad transporters
Offroad tread pattern design
Unique pattern design provides excellent traction and passing performance on soft road
| Tire Size | Ply rating | Pattern | Standard Rim | Section Width | Overall Diameter | Max load | Inflation Pressure | Speed km/h |
| mm | mm | kg | kPa | |||||
| 12.00-20 | 18 | Off-road | 8.5 | 315±3.5% | 1125±1.0% | 3730 | 810 | 90 |
| 1500x600-635 | 14 | E-2G | 19.5 | 576~624 | 1478~1523 | 5750 | 380 | 85 |
| 1500x600-635 | 22 | E-2G | 19.5 | 576~624 | 1478~1523 | 5750 | 380 | 85 |
| 16.00-20 | 32 | E-2F | 12.00-20 | 445±3.5% | 1335±1.0% | 6000 | 675 | 70 |
| 18.00-24 | 24 | E-2G | 13.00-24/25 | 498±15 | 1600±25 | 8200 | 530 | 70 |
| 1300x530-535 | 12 | Off-road | 12.00-20 | 530±3.5% | 1300±1.0% | 4050 | 400 | 75 |
| 13.00-25 | 28 | E-2 | 8.5/10.0 | 335±3.5% | 1300±1.0% | 5010 | 740 | 50 |
| 13.00-20 | 18 | Off-road | 10 | 367±3.5% | 1124±1.0% | 4500 | 840 | 80 |
| 14.00-20 | 20 | Off-road | 10 | 375±3.5% | 1625±1.0% | 4980 | 770 | 90 |
| 15.5-20 | 22 | Off-road | 12 | 425±3.5% | 1260±1.0% | 5650 | 500 | 70 |
| 14.00-24 | 24 | E-3 | 10.00-24 | 375±3.5% | 1370±1.0% | 5150 | 850 | 50 |
| 930x305 | 12 | Rib | KT-141 | 296±6 | 898±10 | 8000 | 1122 | 50 |
Our company is located in Shanghai, China, and has business partners all over the world.We are committed to offering On-Road & Off-Road tires/wheels, which are applied to:
– Construction Machinery (Loaders, ADT, Skid-Steering machines & Graders)
– Transportation (Trucks, Buses & Trailers)
– Agricultural/Irrigation Equipment (Tractors, Combine Harvesters & Trailers)- Forestry Machines (Harvesters, Forwarders & Skidders)
– Material Handling (Reach stackers & Forklifts)
As a professional tire/wheel supplier, we not only know well about products, but also know how to identify the right tires for your equipment.”Quality products and quality service” is our permanent commitment to our customers. Based on the requirements of the International market, we just abstract and collect a summary of popular size tires for your selection. If you cannot find some sizes, patterns or varieties, please do not hesitate to contact us.
