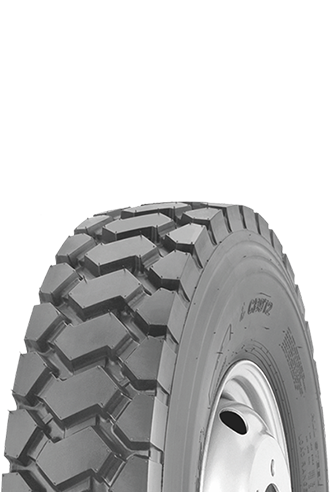

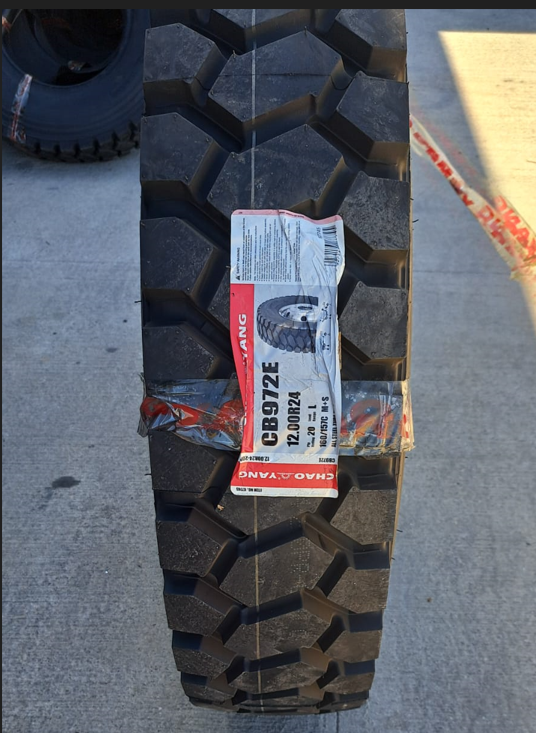

Goodride/Westlake/Chaoyang 12.00R24 325/95R24 CB972E

Features

Aggressive lug design with large blocks at tread center provides excellent traction and braking on rough roads with mud or gravel and is self-cleaning for ease of maintenance
Applicable in mining, logging, construction or rock and quarry operations with some very short on high-way use possible
Special tread compounds resist chipping and chunking in rugged off-road conditions

Size	LR/PR	Service index	Tread Depth (mm)	Standard Rim	Overall Diameter (mm)	Section Width (mm)	Max. Load Capacity at Cold Inflation Pressure
Single	Dual
(kg)	(lbs)	(kPa)	(psi)	(kg)	(lbs)	(kPa)	(psi)
12.00R24	L/20	160/157C	32.0	8.5	1238	315	4500	9920	900	131	4125	9090	900	131
325/95R24	M/22	162/160D	32.0	9.00	1228	325	4750	10470	850	123	4500	9920	850	123

Size

LR/PR

Service index

Tread Depth (mm)

Standard Rim

Overall Diameter (mm)

Section Width (mm)

Max. Load Capacity at Cold Inflation Pressure

Single

Dual

(kg)

(lbs)

(kPa)

(psi)

(kg)

(lbs)

(kPa)

(psi)

12.00R24

L/20

160/157C

32.0

8.5

1238

315

4500

9920

900

131

4125

9090

900

131

325/95R24

M/22

162/160D

32.0

9.00

1228

325

4750

10470

850

123

4500

9920

850

123
