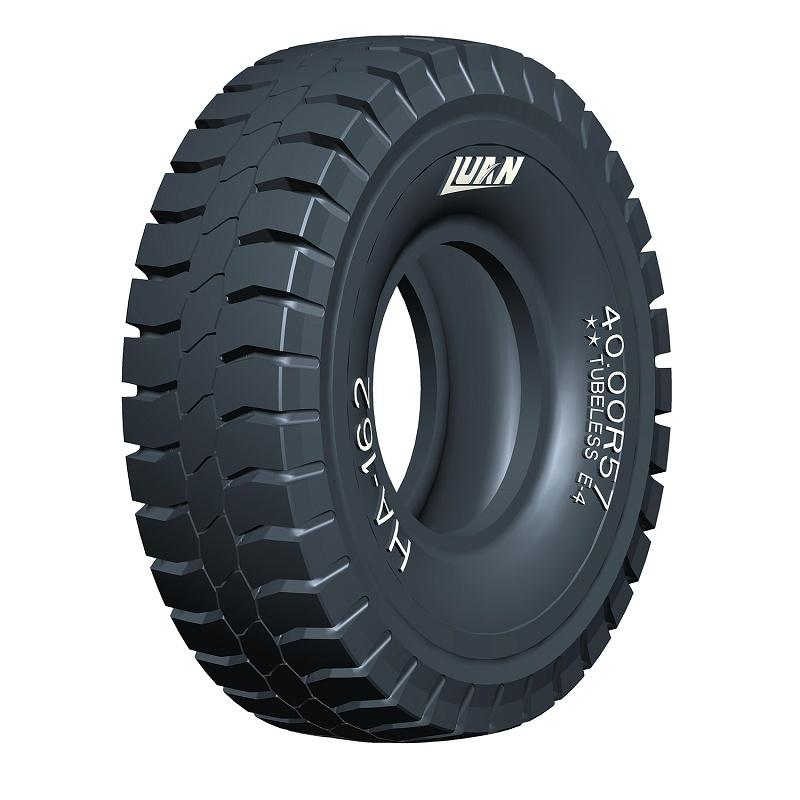

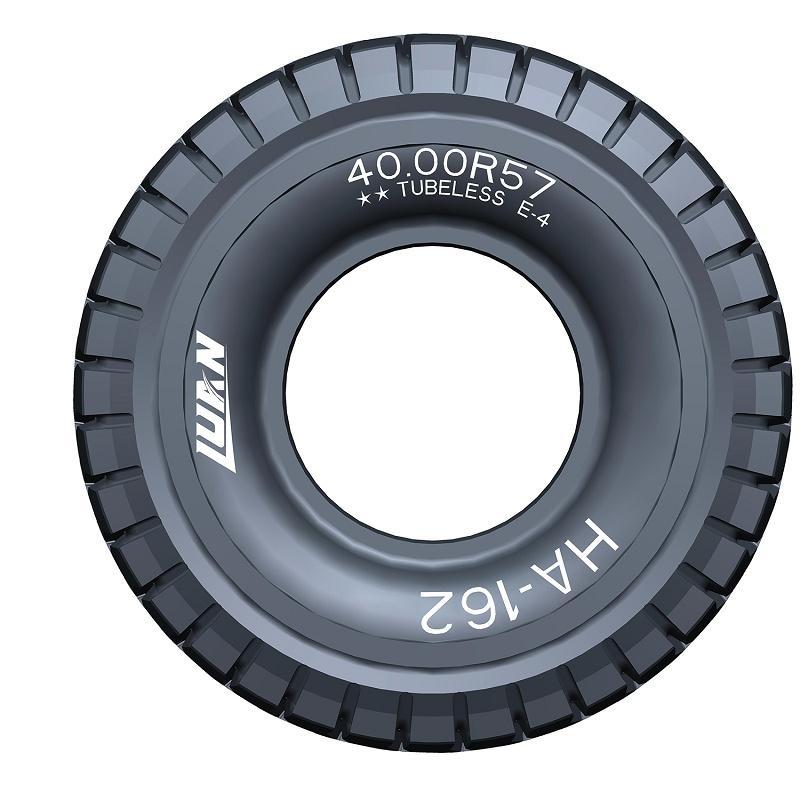

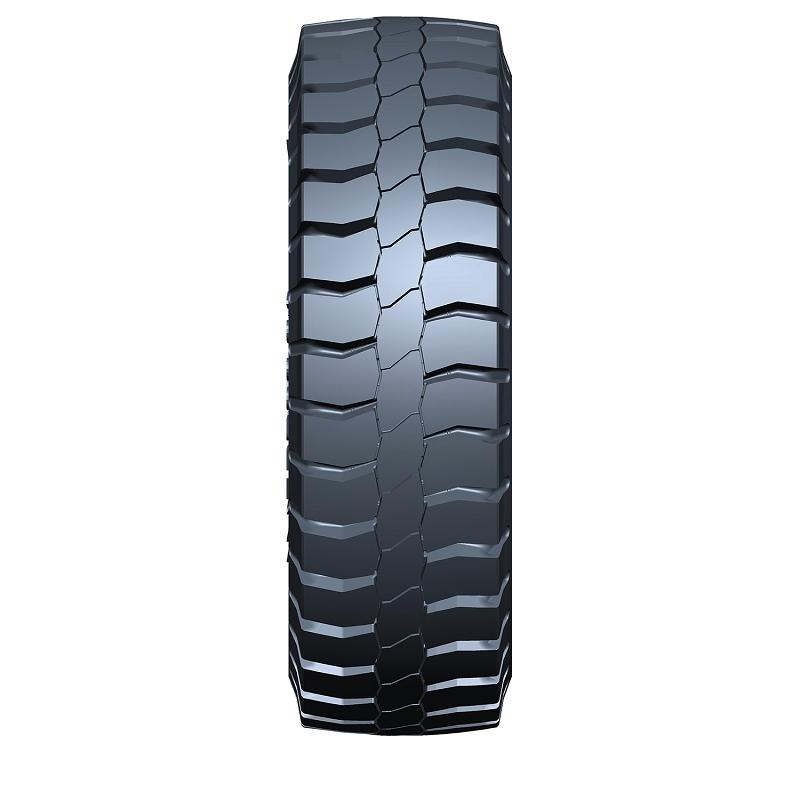

Excellent Cut & Heat Resistance Tread Pattern HA162 Giant Earthmover Tyres

Features

1.HA162 is upgraded based on HA166 pattern.
2. The deeper grooves and larger tread blocks help tires offer better braking performance and cut resistance.
3. The design of wide grooves in the shoulder helps it to have better heat release.
4. Applicable to all kinds of mining conditions.

Specifications

Tire Size Unit Dimensions of New Tire(mm) Dimensions of In-service Tire Rim TKPH
Tread Depth Overall Section Width Section Height External Tire Diameter Rolling Circumference Inter capacity (L) Maximum Overall Section Width Maximum External Diameter Static Loaded Radius Static Loaded Section Width Minimum Dual Spacing Standard Optional Average/PRO
 40.00R57 mm 99 1130 1060 3560 10084 5380 1215 3765 1605 1345 1380 29.00/6.0 32.00/6.0 880/1061
inches 3.9 44.49 41.73 140.16 397.01 47.83 148.23 63.19 52.95 54.33
Payload Limit Under Different Air Pressure
 40.00R57 Air Pressure kPa 475 500 525 550 575 600 625 650 675 700 725
psi 69 73 76 80 83 87 91 94 98 102 105
Payload Limit kg 42500 45000 46250 48750 50000 51500 53000 54500 56000 58000 60000**
lbs. 93500 99000 102000 107500 110000 113500 117000 120000 123500 128000 132500**
