➣Excellent traction in all haul road conditions
➣E4+ deep tread, that is to say it would have longer tire life
➣Wide, square footprint distributes load for minimal haul road disturbance

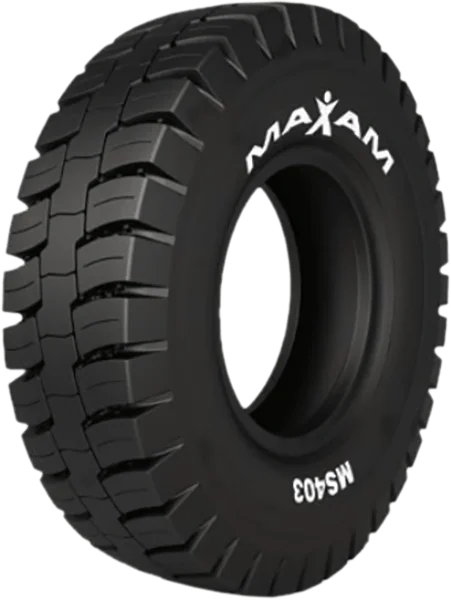

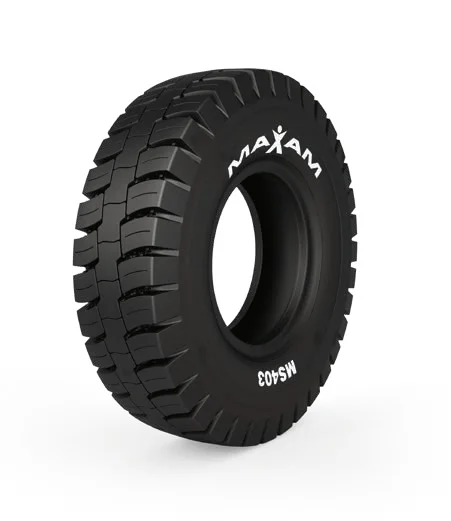

3300R51 MS403
| Size | Rating | Type | Rim | O.D. | S.W. | T.D. | Tread Compound | TMPH TKPH | Infl. P. psi/KPa | L.C.C.(lbs/kg) 30 mph/50 kph | L.I. |
| in/mm | in/mm | 32nds/mm | |||||||||
| 27.00R49 | ★★ | TL | 19.50/4.0 | 106.6 | 29 | 94 | Standard Ultra Cut Resistant | 346/505 232/338 | 102 | 60000 | 223B |
| 2708 | 737 | 75 | Cut Resistant Heat Resistant | 281/410 404/590 | 700 | 27250 | |||||
| 33.00R51 | ★★ | TL | 24.00/5.0 | 120.5 | 35.2 | 105 | Standard Ultra Cut Resistant | 408/595 272/397 | 102 | 85500 | 235B |
| 3061 | 894 | 84 | Cut Resistant Heat Resistant | 324/473 549/802 | 700 | 38750 | |||||
| 36.00R51 | ★★ | TL | 26.00/5.0 | 127.3 | 38.9 | 117 | Standard | 493/720 | 102 | 102000 | 241B |
| 3233 | 988 | 93 | Cut Resistant Heat Resistant | 418/610 569/830 | 700 | 46250 | |||||
| 40.00R57 | ★★ | TL | 29.00/6.0 | 141.5 | 43.2 | 117 | Standard | 599/875 | 102 | 132500 | 250B |
| 3594 | 1097 | 93 | Cut Resistant Heat Resistant | 500/730 714/1042 | 700 | 60000 | |||||
| 50/80R57 | ★★ | TL | 32.00/6.0 | 141.5 | 48.4 | 120 | Standard | 622/908 | 116 | 161000 | 257B |
| 3593 | 1230 | 95 | Cut Resistant Heat Resistant | 529/772 728/1062 | 800 | 73000 | |||||
| 59/80R63 | ★★ | TL | 44.00/5.0 41.00/5.0 | 158.1 | 57.8 | 146 | Standard | 881/1285 | 102 | 220500 | 268B |
| 4017 | 1468 | 116 | Cut Resistant Heat Resistant | 713/1040 1032/1505 | 700 | 100000 | |||||

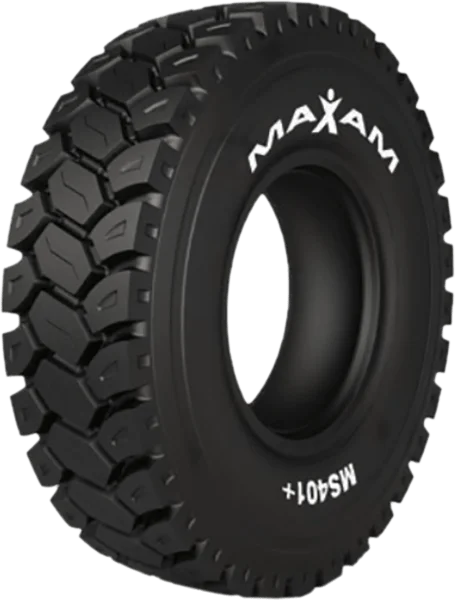

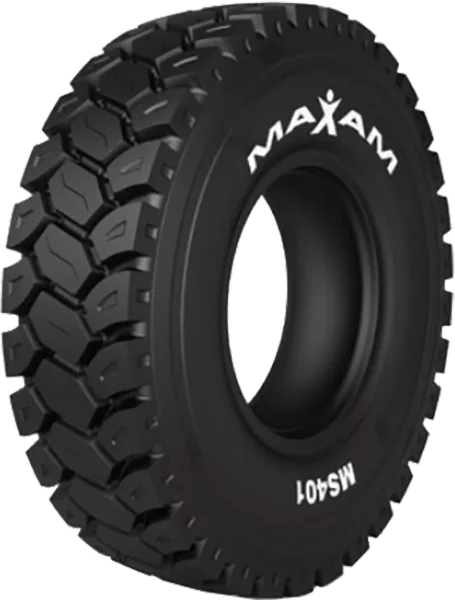

RELATED PRODUCT MS401
| Item | New Tire | HS Code | 401180 |
| Pattern Code | MS403 | Brand | MAXAM |
| Cord Material | Steel Wire | Quality Warrantee | 5000-6000 hours |
| Tube Type | Tubeless | Delivery | Within 40 Days |
| Condition | New | Origin | Made in China |
| Natural Rubber | From Malaysia, Thailand, Indonesia etc | Certificate | DOT |
| Equipment | Imported From Japan and German | Market | Russia, Mongolia etc. |
3300R51 fitting to CAT785D dump truck
2700R49 fitting to CAT777 dump truck
