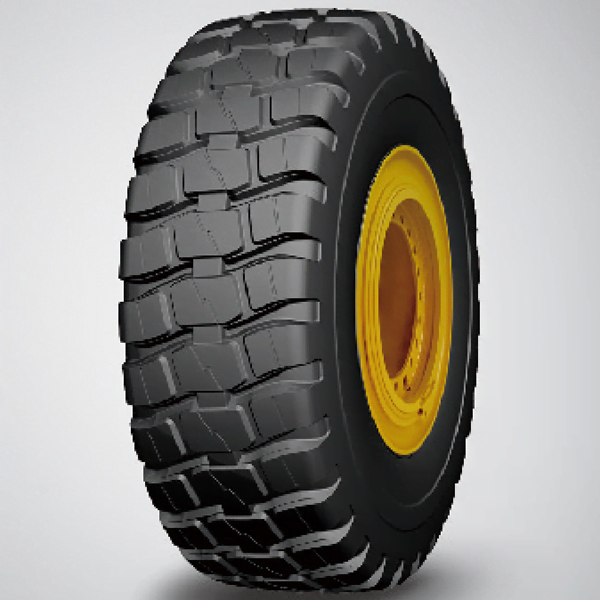

HILO BXDN 17.5R25 26.5R25 29.5R25 E3/L3

Features

•Excellent traction and maneuverability.Variable angled tread pattern reduces stone retention. •lug design assures smooth mud.Recommended for Mixed Service applications. •Stone rejection from the grooves.Reinforced bead enhances load capability. •Supper E-3 tread pattern depth.New tread compaund for resistance cuts, chips and tearing.

Specifications

17.5R25 BXDN HILO Radial OTR tires
SIZE STAR RATING LOAD INDEX TRA CODE TREAD DEPTH TYPE Standard Rim (Rim Width &Flange) DIAMETER SECTION WIDTH Max Load STANDER PRESSURE MAX SPEED
(mm) (mm) (mm) (kg) (bar) (Km/h)
17.5R25 ★★ 182/167 L-3/E-3 28 TL 14.00/1.5 1348 445 8500/5450 6.5/5.25 10/50
20.5R25 ★★ 193/177 L-3/E-3 31 TL 17.00/2.0 1490 521 11500/7300 6.5/5.25 10/50
23.5R25 ★★ 201/185 L-3/E-3 42.5 TL 19.50/2.5 1617 597 14500/9250 6.5/5.25 10/50
26.5R25 ★★ 209/193 L-3/E-3 45 TL 22.00/3.0 1770 673 18500/11500 6.5/5.25 10/50
29.5R25 ★★ 216/200 L-3/E-3 48 TL 25.00/3.5 1873 750 22400/14000 6.5/5.25 10/50
