TNR > E-3A
  • E-3A

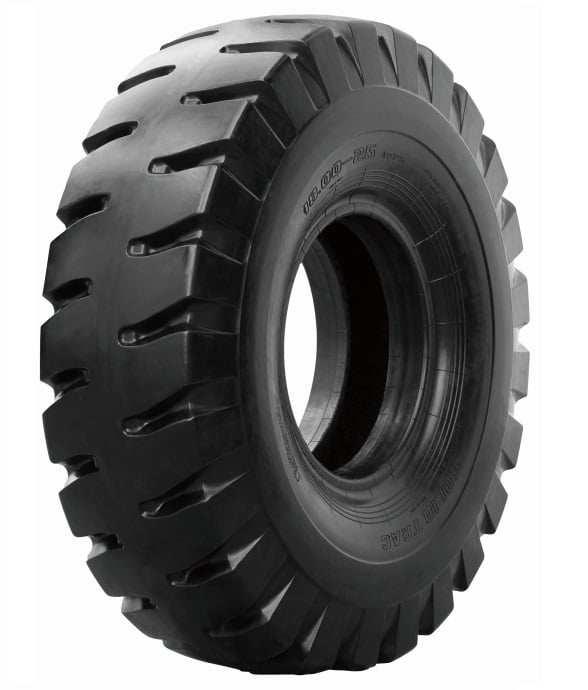

E-3A

Features

> Special construction design for high torque and heavy load service. > Self cleaning sturdy lugs are designed for good traction and good penertration resistance. > Strong carcass and deep tread provide long tire life. > Applications:Handling&Towing Equipments

Specifications


SIZE PR PATTERN NO. TYPE TREAD DEPTH (mm) STD.RIM (INFLATION PRESSURE)(kPa) LOAD CAPACITY AT VARIOUS SPEED (kg) S.W.(mm) O.D.(mm)
0km/h Creep 5km/h 10km/h 15km/h 20km/h 25km/h 30km/h
21.00-35 44 E-3A TL 42 15.00/3.0 1250 45900 40800 36790 34420 33150 32380 31870 309+80 570 2005
21.00-25 44 E-3A TL 42 15.00/3.0 1250 39580 35180 31860 29950 28480 27800 27360 27140 572 1750
21.00-25 42 E-3A TL 42 15.00/3.0 1150 37370 33220 30200 28000 27000 26360 25940 25730 572 1750
18.00-25 44 E-3A TL 41 13.00/2.5 1250 32290 28700 25990 24110 23240 22700 22340 22160 510 1636
18.00-25 40 E-3A TL 41 13.00/2.5 1150 30600 27200 24650 22950 22100 21590 21250 21080 510 1636
