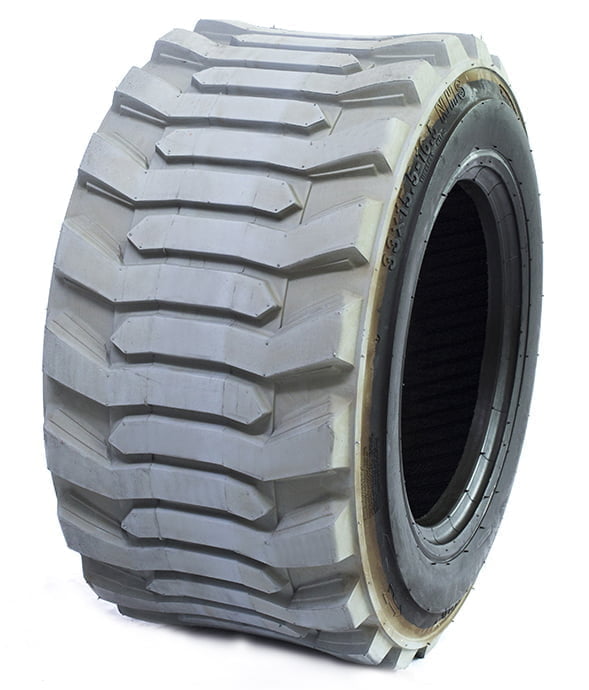

AWP non-marking tire
AWP
All AWP tire sizes are available for NON MARKING
Specifications:
| Tire Size | PR | Pattern Code | Rim Size | Inflation Pressure | Section Width | Overall Diameter | Max Load (kg)10km/h |
| (kpa) | (mm) | (mm) | |||||

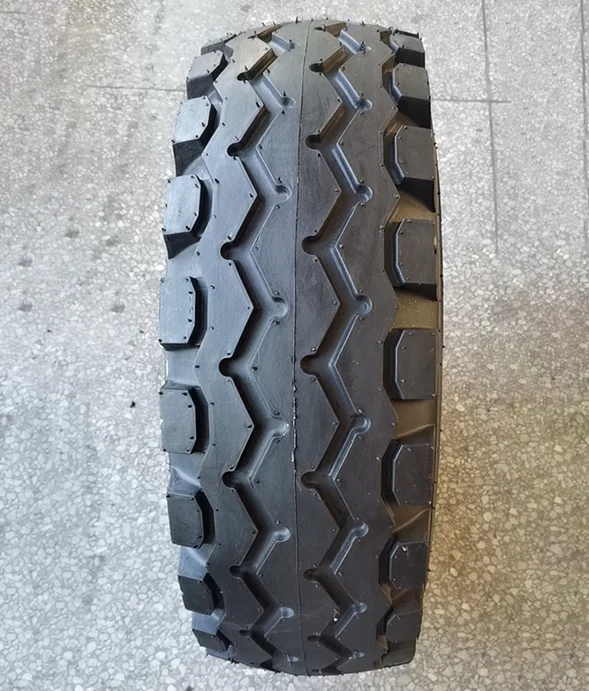

| 9-14.5 | 14 | K01 | 14.5×7 | 700 | 241 | 705 | 2800 |

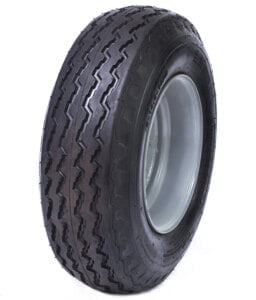

| 9-14.5 | 14 | RIB | 14.5×7 | 790 | 241 | 705 | 1590 |
| 385/65D22.5 (15-22.5) | 16 | R4 | 22.5×11.75 | 690 | 390 | 1070 | 5590 |
| 445/65D22.5 (18-22.5) | 18 | R4 | 22.5×13 | 690 | 450 | 1150 | 7320 |
| 355/55D625 (14-24.5) | 14 | R4 | 24.5×11.75 | 520 | 350 | 940 | 3450 |
| 385/45-28 | 16 | R4 | 28×13 | 750 | 380 | 1070 | 6000 |
| 385/50D625 (15-625)A | 16 | R4 | 24.5×13 | 690 | 386 | 1010 | 5600 |
| 445/45D625 (18-625)A | 16 | R4 | 24.5×15 | 690 | 430 | 1030 | 6900 |
| 385/50D625 (15-625)B | 16 | R4 | 24.5×13 | 690 | 386 | 960 | 5600 |
| 445/45D625 (18-625)B | 16 | R4 | 24.5×15 | 690 | 430 | 960 | 6900 |
| 445/50D710 （18-710） | 18 | R4 | 28×15 | 590 | 445 | 1180 | 7320 |
| 315/55D20 | 12 | R4 | 20×11 | 550 | 318 | 848 | 2870 |
| 39×15-22.5 A | 16 | R4 | 22.5×13 | 690 | 375 | 970 | 6525 |
| 39×15-22.5 B | 16 | R4 | 22.5×13 | 690 | 360 | 940 | 6525 |
| 840×15.5-510 | 14 | R4 | 20×14 | 620 | 392 | 850 | 3670 |

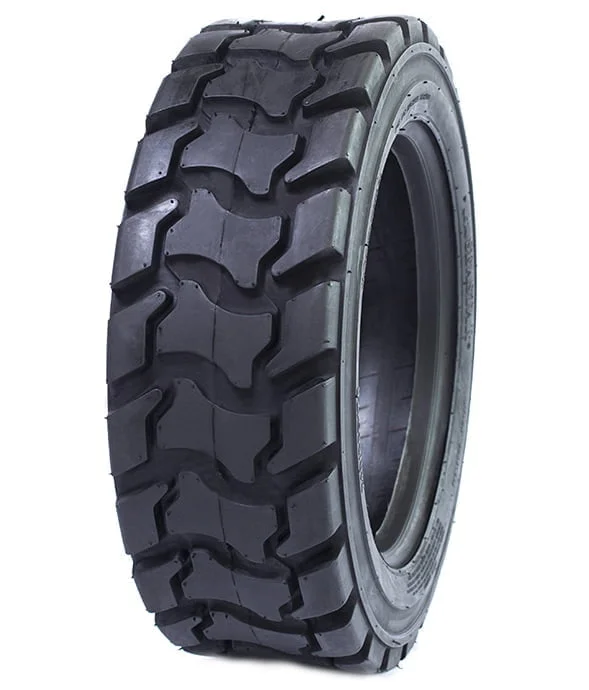

| 240/55D17.5 | 12 | R4 | 17.5×6.75 | 690 | 220 | 715 | 2000 |

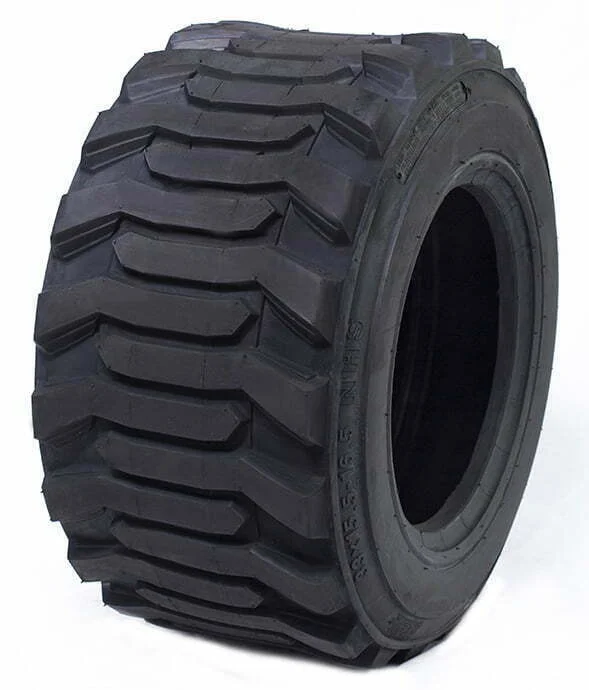

| 305-546 | 10 | R4W | 22.5*9.75 | 450 | 305 | 805 | 2950 |
| 14-17.5 | 14 | R4W | 17.5×10.5 | 550 | 349 | 935 | 3875 |

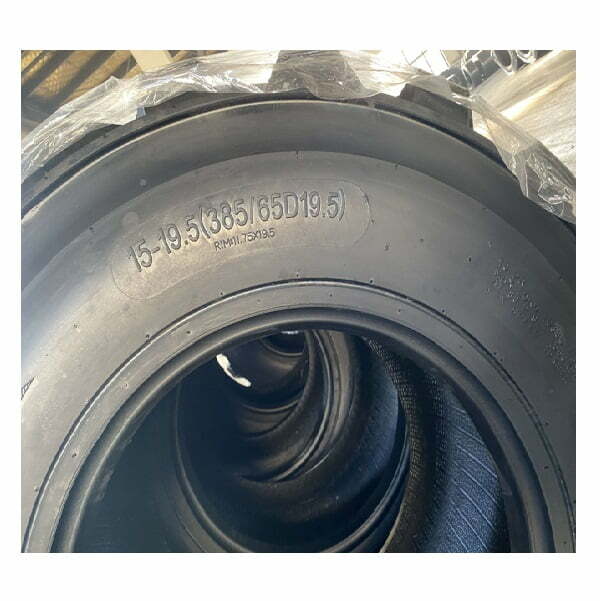

| 385/65D19.5 (15-19.5) | 16 | R4W | 19.5×11.75 | 550 | 389 | 1006 | 4935 |
| 445/65D19.5 (18-19.5) | 16 | R4W | 19.5×13 | 580 | 445 | 1006 | 6000 |
| 445/55D19.5 | 16 | R4W | 19.5×13 | 580 | 445 | 996 | 6000 |
| 33×15.5-16.5 | 14 | R4W | 16.5×12 | 550 | 400 | 840 | 3670 |
| 240/55D17.5 | 12 | M01 | 17.5×6.75 | 690 | 220 | 715 | 2000 |
| 240/55D17.5 | 12 | M02 | 17.5×6.75 | 690 | 220 | 715 | 2000 |

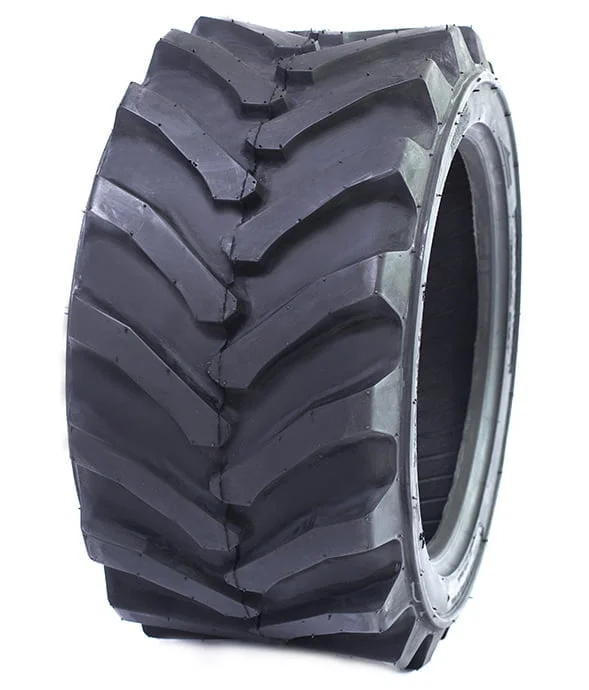

| 26×12-16.5 (300/40-16.5) | 10 | R1 | 16.5×9.75 | 400 | 300 | 665 | 1600 |

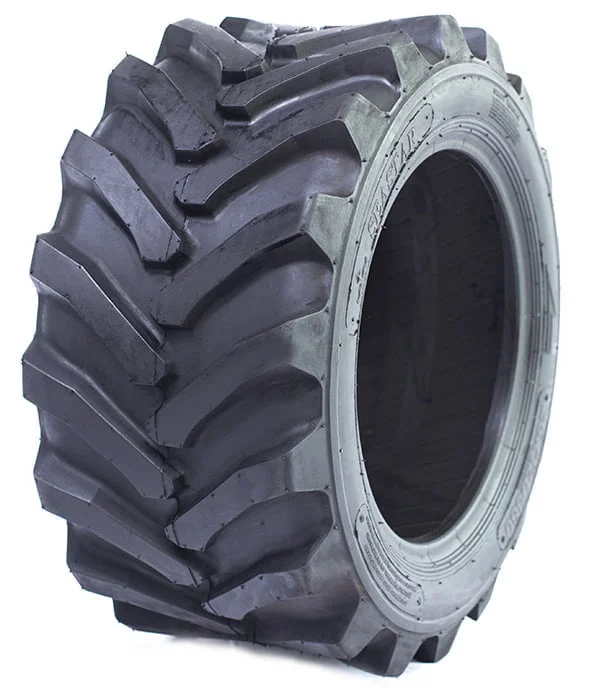

| 26x12D380 | 8 | R1 | 15×10 | 380 | 300 | 665 | 1550 |
