803
S8803
803
S8803

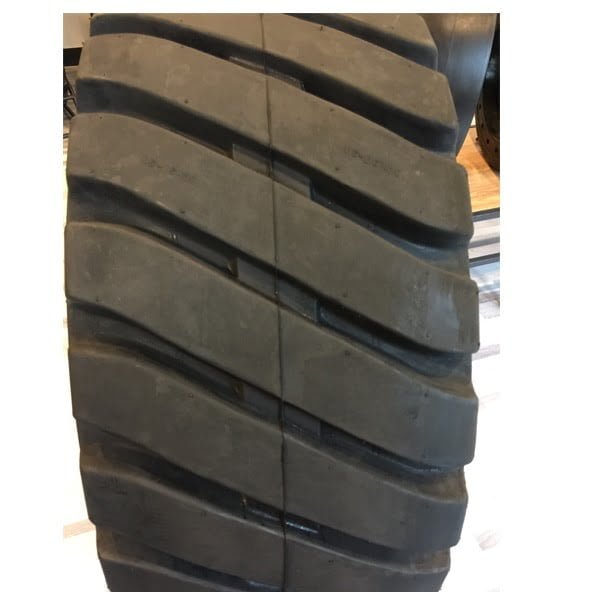

S8803 14.00-20 50×20-20

S8803 14.00-20

> Suitable for operation under extremely harsh rocky conditions such as mines, wells and tunnels etc.

> Super-strong carcass, thickened tread, high-strength, high-hardness special tread formula, make the tires have good resistance to cutting, puncture resistance and wear resistance.

> Special driving surface and pattern design, stable tire running and good passing performance.

Specifications:

S8803 14.00-20 Specification:

SIZE PR PATTERN NO. TYPE TREADDEPTH(mm) STD.RIM MAX LOAD INFLATION PRESSURE S.W.(mm) O.D.(mm)
(kg) (kPa)
50×20-20 36 S8803 TL 33 15.00 12940 1030 495 1270
14.00-20 32 S8803 TT 29 10.00 10025 Require Fill 375 1245
14.00-20 28 S8803 TT 29 10.00 9250 965 375 1245

Description :

company introduction

Our company is located in Shanghai, China, and has business partners all over the world.We are committed to offering On-Road & Off-Road tires/wheels, which are applied to:

– Construction Machinery (Loaders, ADT, Skid-Steering machines & Graders)

– Transportation (Trucks, Buses & Trailers)

– Agricultural/Irrigation Equipment (Tractors, Combine Harvesters & Trailers)- Forestry Machines (Harvesters, Forwarders & Skidders)

– Material Handling (Reach stackers & Forklifts)

As a professional tire/wheel supplier, we not only know well about products, but also know how to identify the right tires for your equipment.”Quality products and quality service” is our permanent commitment to our customers. Based on the requirements of the International market, we just abstract and collect a summary of popular size tires for your selection. If you cannot find some sizes, patterns or varieties, please do not hesitate to contact us.
