TNR > AGR > Armour 13.6-16 8PR 11×32 6PR R-1
  • Armour 13.6-16 8PR 11×32 6PR R-1
  • Armour 13.6-16 8PR 11×32 6PR R-1
  • Armour 13.6-16 8PR 11×32 6PR R-1

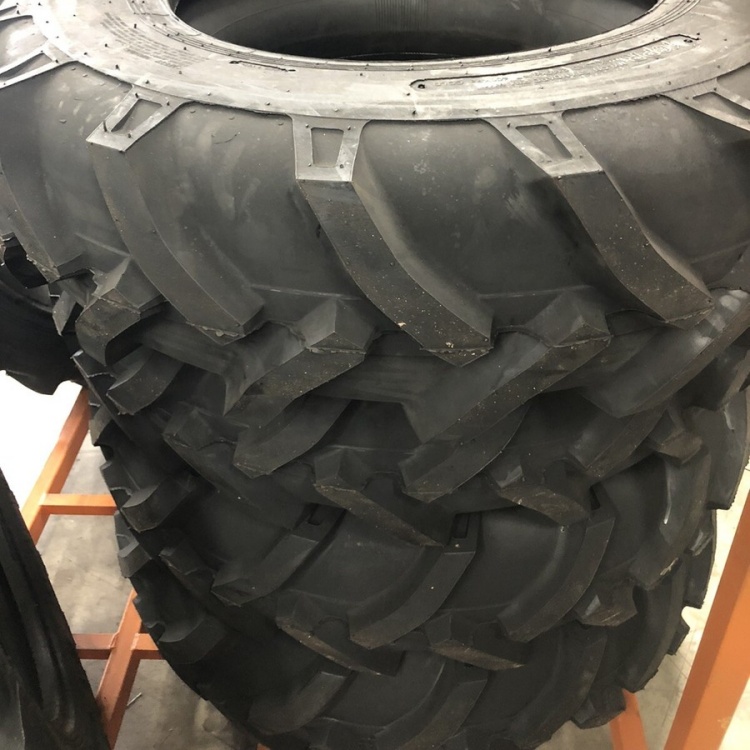

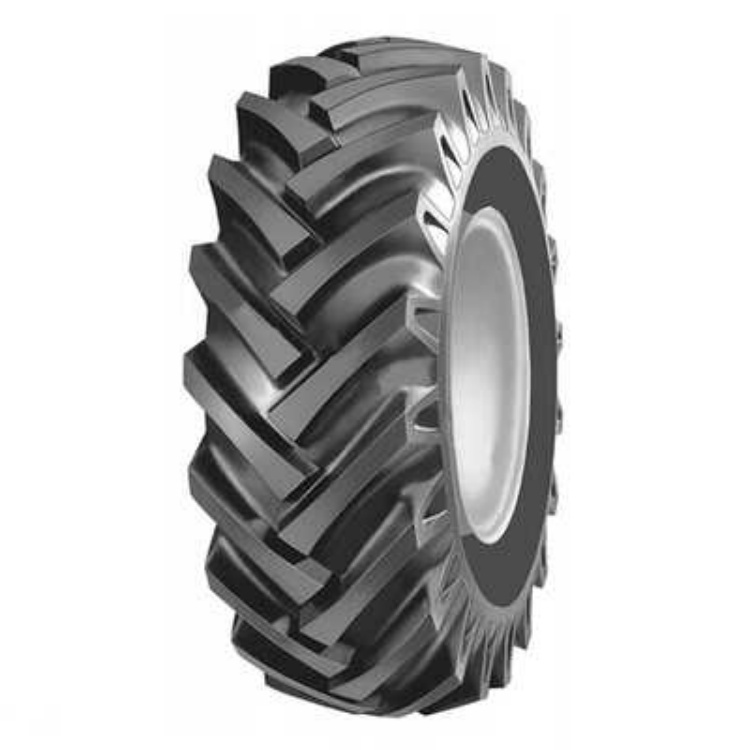

Armour 13.6-16 8PR 11×32 6PR R-1

Features

Applicable models:tractors, harvesters, cultivation and plant protection machines, siders, and other agricultural machinery.

  • Herringbone tread pattern, superior traction performance.
  • High-strength tyre body, excellent load-bearing capacity.
  • Outstanding wear and puncture resistance.
  • Wide application in various farmland operations.

Specifications

 Size Ply Rating Pattern Code Standard Rim Tread Depth (mm) Overall Diameter (mm) Section Width (mm) Relevant Pressure (kap) Max Loading (kg)
 5.00-12TT 8PR R-1 4.00E 22 584 136 280 345
 6.00-12TT 6PR R-114 4.50E 20 640 165 250 405
 6.00-12TT 6PR R-116 4.50E 22 640 165 250 405
 6.00-12TT 10PR R-116 4.50E 22 640 165 430 610
 6.00-14TT 6PR R-1 4.50E 24 690 165 250 450
 6.00-14TT 12PR R-1 4.50E 24 690 165 490 670
 5.00-15TL 6PR R-1 3.00D 16 646 138 350 475
 5.50-16TT 4PR R-1 4.00E 22 704 150 160 350
 6.00-16TT 6PR R-1 4.50E 32 745 165 250 495
 6.00-16TT 8PR R-1 4.50E 32 745 165 360 550
 6.50-16TT 6PR R-1 5.00F 25 757 173 250 565
 6.50-16TT 8PR R-1 5.00F 25 757 173 310 650
 6.5/80-15TT 6PR R-1 4J 15 685 152 360 550
 6.5/80-15TL 6PR R-1 5 15 686 174 360 560
 7.00-12TT 6PR R-1 5.00F 25 682 173 250 450
 7.00-16TT 10PR R-1 6.00F 26 742 183 430 680
 7.50-16TT 6PR R-1 5.50F 23 810 205 210 650
 7.50-16TT 8PR R-1 5.50F 23 810 205 280 770
 7.50-16TT 12PR R-1 5.50F 23 810 205 550 1100
 7.50-16TT 6PR R-1 5.50F 22 810 205 210 650
 7.50-16TT 8PR R-1 5.50F 22 810 205 280 770
 7.50-20TT 6PR R-1 5.50F 26 910 205 210 760
 8.3-20TT 6PR R-1 W7 24 895 210 240 695
 8.3-20TT 8PR R-1 W7 24 895 210 310 850
 8.3-24TT 6PR R-1 W7 26 985 207 240 810
 8.3-24TT 8PR R-1 W7 26 985 207 250 830
 9.50-16TT 6PR R-1 W8 23 848 250 210 800
 9.50-16TT 16PR R-1 W8 23 848 250 600 1500
 9.5-20TT 6PR R-1 W8 33 935 236 210 810
 9.5-20TT 8PR R-1 W8 33 935 236 280 955
 9.5-20TT 10PR R-1 WB 33 935 236 350 1090
 9.5-24TT 6PR R-1 W8 30 1050 240 210 940
 9.5-24TT 8PR R-1 W8 30 1050 240 280 1110
 9.5-24TT 12PR R-1 W8 30 1050 240 420 1395
 9.5-28TT 8PR R-1 W8 33 1126 237 280 1185
 9.5-32TT 8PR R-1 W8 33 1250 240 280 1260
 10-15TT 8PR R-1 9.00*15.3 19 785 255 240 1425
 10-15TT 12PR R-1 9.00*15.3 19 785 255 400 1900
 10.0/75-15.3TL 10PR R-1 9 22 760 264 390 1090
 10.0/75-15.3TL 14PR R-1 9 22 760 264 550 1320
 10.0/75-15.3TT(1 )10PR R-1 9 28 880 285 390 1525
0.0/75-15.3TT(2) 10PR R-1 9 28 910 275 390 1525
 10.0/75-15.3TT(2 )12PR R-1 9 28 910 275 430 1800
 10.5/65-16TT 10PR R-1 9 22 755 274 380 1090
 11.2-20TT 8PR R-1 W10 33 1005 285 240 1085
 11.2-20TT 14PR R-1 W10 33 1005 285 420 1520
 11.2-24TT 6PR R-1 W10 33 1105 285 180 1045
 11.2-24TT 8PR R-1 W10 33 1105 285 240 1225
 11-32TT 6PR R-1 W10 29 1345 306 140 1000
 11-32TT 10PR R-1 W10 29 1345 306 250 1435
 11-32TT 12PR R-1 W10 29 1345 306 290 1530
 13.6-16TT 8PR R-1 W12 29 1000 345 150 1060
 11-32TT 6PR R-1 W10 29 1345 306 140 1000
 11-32TT 10PR R-1 W10 29 1345 306 250 1435
 11-32TT 12PR R-1 W10 29 1345 306 290 1530
