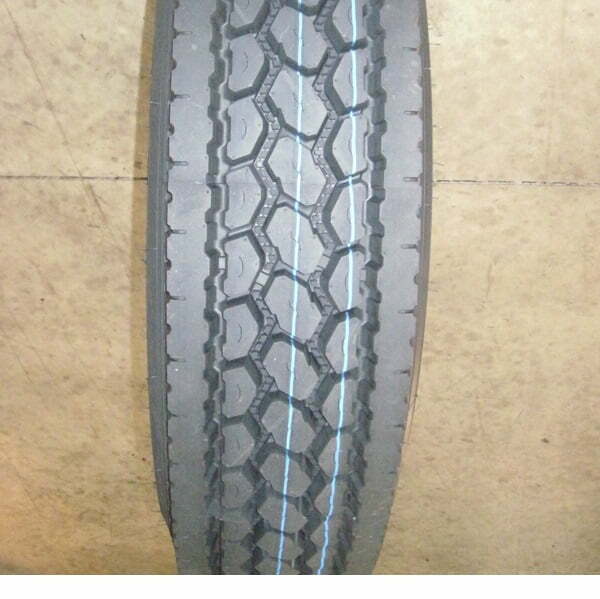

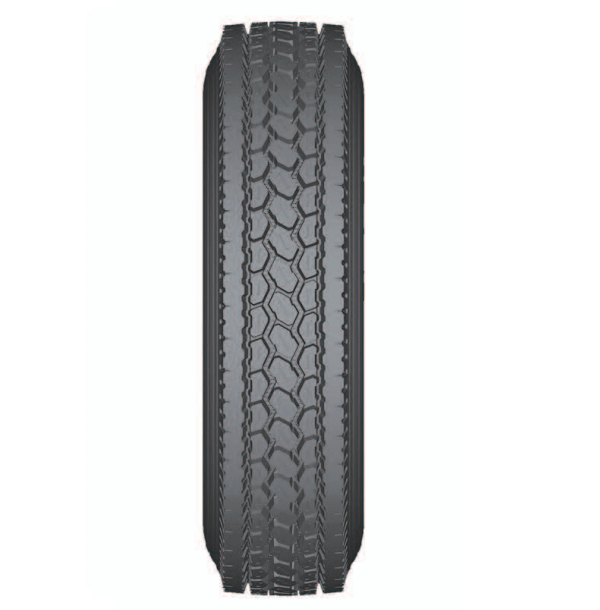

BOTO BT566 11R22.5

Features

1. Drive application for long haul and regional haul service, Closed shoulder design helps promote uniform wear throughout the life of the tire 2. Deep tread depth helps to provide long original life 3. Aggressive tread pattern design helps to provide excellent traction 4. Continuous shoulder ribs to fight irregular wear

Specifications

11R22.5 BOTO BT566
SIZE PR NEW TYRE INFLATED DIMENSIONS(mm) LOAD INDEX MAX.LOAD (kg) SPEED RATING STANDARD RIM T.D.
S.W. O.D. SINGLE/DUAL SINGLE/DUAL (kg)
11R22.5 14PR 279 1054 144/142 2800/2650 L 8.25 22.5
11R22.5 16PR 279 1054 146/143 3000/2725 L 8.25 22.5
11R24.5 14PR 279 1104 146/143 3000/2725 L 8.25 22.5
11R24.5 16PR 279 1104 149/146 3250/3000 L 8.25 22.5
285/75R24.5 14PR 283 1050 144/141 2800/2575 L 8.25 22.5
285/75R24.5 16PR 283 1050 147/144 3075/2800 L 8.25 22.5
29575R22.5 14PR 298 1014 144/141 2800/2575 L 9.00 22.5


Description

Tire and Wheel Assembly

We receive the tires and wheels directly from the manufacturers and assemble them through several high quality and automated processes. We specialize in high precision tire-wheel assembly, logistics.

Advantages

There are many advantages of purchasing complete tire and wheel assemblies from us.
The assemblies are designed by experienced engineers, put together by a work force that manufactures tens of thousands per year, are subject to stringent quality control, and come with a warranty.  Complete wheel and tire assemblies arrive at the customer inflated, with all mobility devices and accessories installed, ready to bolt onto the hub and drive away.

  • Save The Assembly Cost For Our Buyers

    It's much cheaper to assemble them in China with our expertise.

  • Save The Freight Cost For Our Buyers

    We ship more together than seperately.

  • Quality Warranty

    All assemblies come with warranty.

  • Supply of Every Component

    They come with accessories and ready to bolt on hubs.

Service Range

Proinde die funestis interrogationibus praestituto imaginarius iudex equitum resedit magister adhibitis aliis iam quae essent agenda praedoctis, et adsistebant hinc inde notarii, quid quaesitum esset, quidve responsum, cursim ad Caesarem perferentes.

Our Service Steps

  • Step 1:

    The fitter will get the new tires and wheels ready.

  • Step 2:

    The diameter of the new tire should match the diameter of the rim, and it should be approved for use with the vehicle. Rims should be the correct size, in perfect condition, and free of rust. They must not be damaged, deformed, or worn.

  • Step 3:

    Moving on to the tire beads, the fitter will coat the beads and the rim with fitting lubricant as recommended by the tire manufacturer. Then he will use the tire spreader to mount the tire onto the wheel.

  • Step 4:

    Next comes the inflation of the tire. For the duration of this stage, the wheel must remain firmly secured on a mounting machine. Inflating an unsecured tire is dangerous. The fitter will be aware of this; it’s also why he keeps a reasonable distance from the tire during inflation. Typically, he will use a sufficiently long, secured extension hose with an integrated pressure gauge, and he won’t be bending over the tire as it fills up with air.

  • Step 5:

    Once the beads of the tire are seated correctly on the shoulder of the rim, the fitter will increase the tire pressure to achieve a firm grip on the flanges of the rim. This fitting pressure shouldn’t exceed more than 150% of the maximum pressure recommended by the manufacturer. Next, the fitter will adjust the pressure to the operating pressure as specified by the vehicle manufacturer.

Automatic Assembly Line

Process of automatic assembly line consists of the following process steps:

  • Measuring Station

    A

  • Wheel Soaping
    Station

    B

  • Tire and Wheel
    Matching Station

    E

  • Tire and Wheel Fitting (Mounting)
    StationStation

    D

  • Tire Soaping
    Station

    C

  • Inflation Station

    F

  • Bead Optimizing
    Station

    G

Our Success Stories

Every year, we fit hundreds and thousands of tires to wheels.

11R22.5 BOTO BT566 fitting to TBR TBR tyre is the short name of Truck and Bus Radial Tyre, so we can see that TBR tyres are mainly used for Truck and Busvehicles,sometimes we also call TBR tyre as commercial tyre because the TBR tyres are used for commercial vehicles. Meanwhile, the TBR tyre's structure is all steel wire, so the TBR tyre has better loading performance.
