1. Close shoulder design
2. Mainly for drive wheel
3. Fuel saving for low rolling resistance
4. Excellent water drainage
5. Excellent grip and traction performance

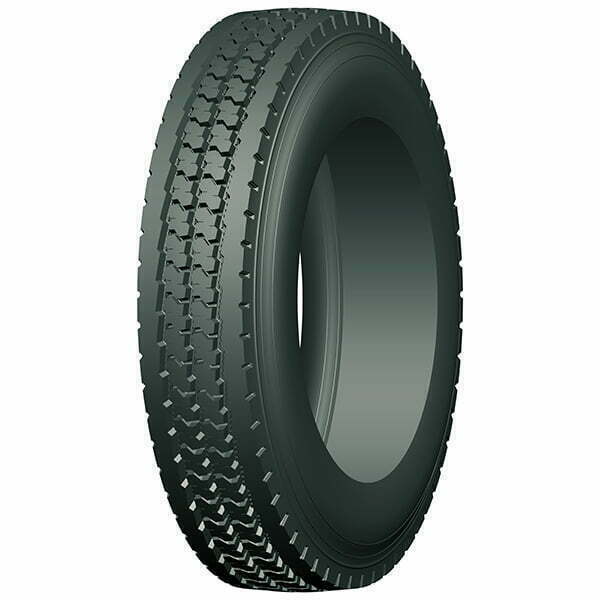

11R22.5 BOTO BT556
| SIZE | PR | NEW TYRE INFLATED DIMENSIONS(mm) | LOAD INDEX | MAX.LOAD (kg) | SPEED RATING | STANDARD RIM | T.D. | |
| S.W. | O.D. | SINGLE/DUAL | SINGLE/DUAL (kg) | |||||
| 11R22.5 | 14PR | 279 | 1054 | 144/142 | 2800/2650 | L | 8.25 | 20.5 |
| 11R22.5 | 16PR | 279 | 1054 | 146/143 | 3000/2725 | L | 8.25 | 20.5 |
| 11R24.5 | 14PR | 279 | 1104 | 146/143 | 3000/2725 | L | 8.25 | 20.5 |
| 11R24.5 | 16PR | 279 | 1104 | 149/146 | 3250/3000 | L | 8.25 | 20.5 |
| 255/70R22.5 | 14PR | 255 | 930 | 136/133 | 2240/2060 | M | 7.50 | 20.5 |
| 255/70R22.5 | 16PR | 255 | 930 | 140/137 | 2500/2300 | M | 7.50 | 20.5 |
| 285/75R24.5 | 14PR | 283 | 1050 | 144/141 | 2800/2575 | L | 8.25 | 20.5 |
| 285/75R24.5 | 16PR | 283 | 1050 | 147/144 | 3075/2800 | L | 8.25 | 20.5 |
| 295/75R22.5 | 14PR | 298 | 1014 | 144/141 | 2800/2575 | L | 9.00 | 20.5 |
| 295/75R22.5 | 16PR | 298 | 1014 | 146/143 | 3000/2725 | L | 9.00 | 20.5 |
11R22.5 BT556
fitting to TBR
TBR tyre is the short name of Truck and Bus Radial Tyre, so we cansee that TBR tyres are mainly used for Truck and Busvehicles,sometimes we also call TBR tyre as commercial tyre because the TBR tyres are used for commercial vehicles. Meanwhile, the TBR tyre’s structure is all steel wire, so the TBR tyre has better loading performance.
