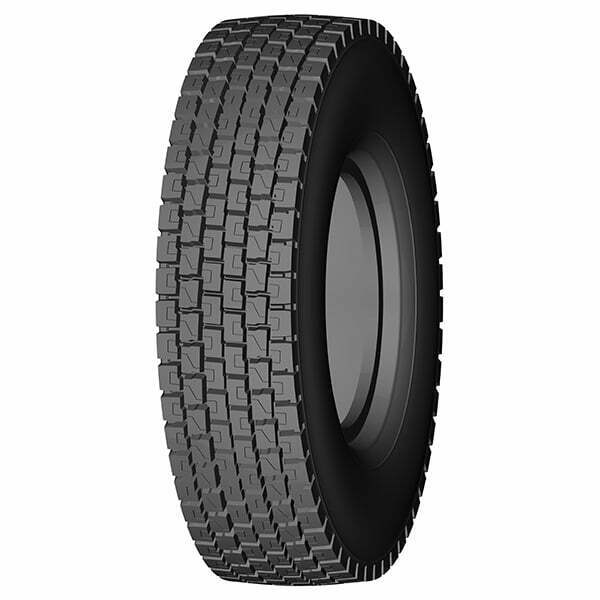

12R22.5 BT398+
fitting to TBR
1. Mainly used for drive wheel.Open shoulder tread pattern delivers traction in all weather conditions
2. For long haul application on paved road,Recommended for on-highway Regional and Pickup/Delivery drive applications.
3.Wide circumferential grooves reduce hydroplaning.
4.Open Shoulder tread pattern delivers traction in all weather conditions.
5. Deep tread depth and wide tread crown offers long mileage.Recommended for on-highway Regional and Pickup/Delivery drive applications
6.Open Shoulder tread pattern delivers traction in all weather conditions.Wide circumferential grooves reduce hydroplaning
7. Unique tread block ensures good traction and brake performance
12R22.5 BOTO BT398+
SIZE | PR | NEW TYRE INFLATED DIMENSIONS(mm) | LOAD INDEX | MAX.LOAD (kg) | SPEED RATING | STANDARD RIM | T.D. | |
S.W. | O.D. | SINGLE/DUAL | SINGLE/DUAL (kg) | |||||
12R22.5 | 16PR | 300 | 1085 | 146/143 | 3000/2725 | L | 9.00 | 24 |
12R22.5 | 16PR | 300 | 1085 | 150/147 | 3350/3075 | L | 9.00 | 24 |
12R22.5 | 18PR | 300 | 1085 | 152/149 | 3550/3250 | L | 9.00 | 24 |
315/80R22.5 | 18PR | 312 | 1076 | 154/151 | 3750/3450 | L | 9.00 | 24 |
315/80R22.5 | 20PR | 312 | 1076 | 157/154 | 4125/3750 | K | 9.00 | 24 |
315/80R22.5 | 20PR | 312 | 1076 | 156/150 | 4000/3350 | L | 9.00 | 24 |
RELATED PRODUCT BT398+
TBR tyre is the short name of Truck and Bus Radial Tyre, so we can see that TBR tyres are mainly used for Truck and Busvehicles,sometimes we also call TBR tyre as commercial tyre because the TBR tyres are used for commercial vehicles.Meanwhile, the TBR tyre’s structure is all steel wire, so the TBR tyre has better loading performance.
