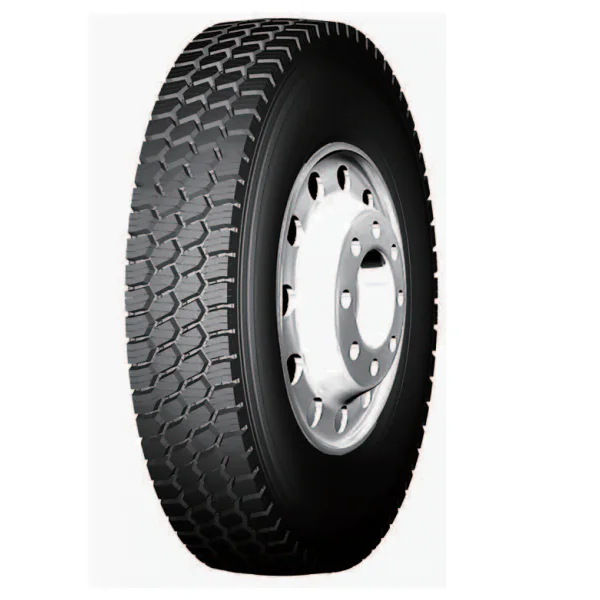

11R22.5 BT389
fitting to TBR
BOTO BT389 11R22.5

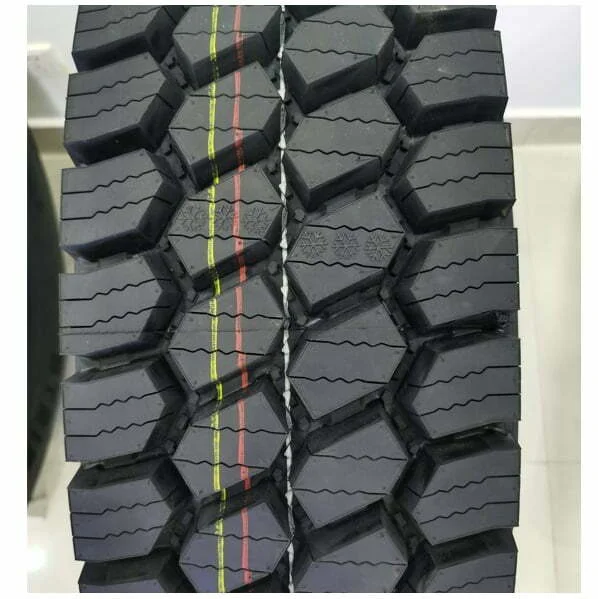

1. Aggressive, open-shoulder design helps deliver long tread life and traction.
2. Extensive lug and siping to improve traction on wet and dry surfaces, and the extra-wide tread helps deliver added stability.
Especially in deep snow
3. Suitable for all position axle of trucks running on the multi roal.
4. Good handling and driving.Aggressive pattern provides tire excellent drive and braking performance
5. Long life. Suitable for drive axle of trucks using for high traction and high scrub applications
6.Shoulder pattern groove and open pattern design with good tire heat dissipation
Specifications:
11R22.5 BOTO BT389
| SIZE | PR | NEW TYRE INFLATED DIMENSIONS(mm) | LOAD INDEX | MAX.LOAD (kg) | SPEED RATING | STANDARD RIM | T.D. | |
| S.W. | O.D. | SINGLE/DUAL | SINGLE/DUAL (kg) | |||||
| 11R22.5 | 14PR | 279 | 1054 | 144/142 | 2800/2650 | M | 8.25 | 21 |
| 11R22.5 | 16PR | 279 | 1054 | 146/143 | 3000/2725 | L | 8.25 | 21 |
| 11R24.5 | 14PR | 279 | 1104 | 146/143 | 3000/2725 | M | 8.25 | 21 |
| 11R24.5 | 16PR | 279 | 1104 | 149/146 | 3250/3000 | L | 8.25 | 21 |
RELATED PRODUCT BT389
TBR tyre is the short name of Truck and Bus Radial Tyre, so we cansee that TBR tyres are mainly used for Truck and Busvehicles,sometimes we also call TBR tyre as commercial tyre because the TBR tyres are used for commercial vehicles. Meanwhile, the TBR tyre’s structure is all steel wire, so the TBR tyre has better loading performance.
