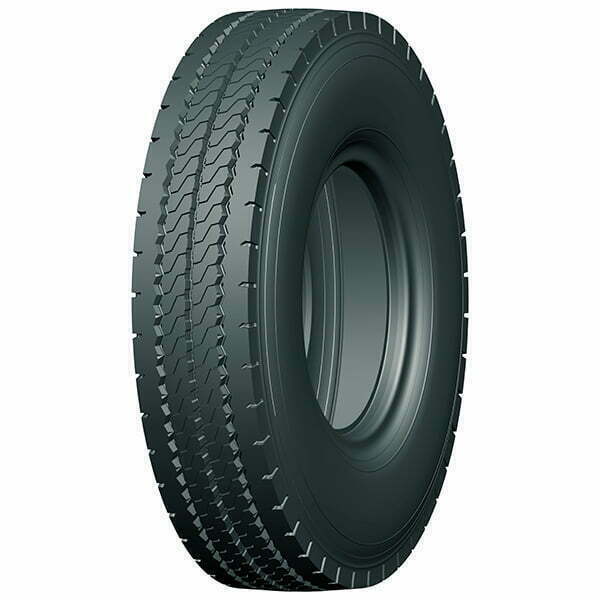

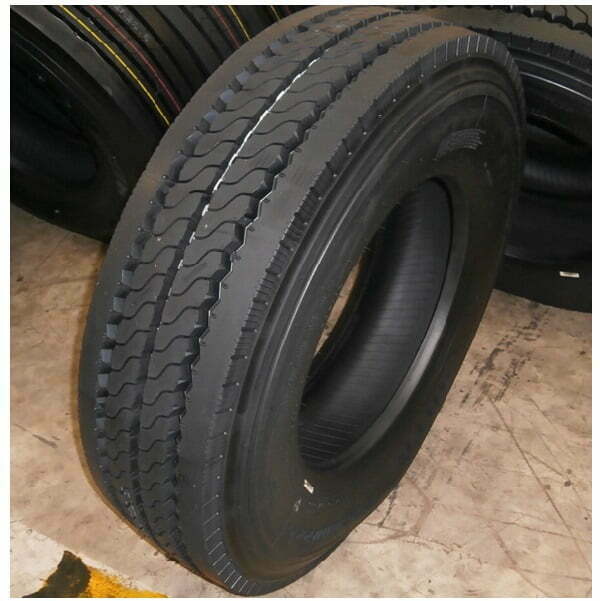

11.00R20 BT369
fiiting to TBR
1. For long haul application of truck and all positions wheels on good roads;
2. With wide tread design to extend tire service life;
3. With excellent water drainage and heat dispersion performance;
4. This pattern has performance in low heating up and rolling resistance.
11.00R20 BOTO BT369
SIZE | PR | NEW TYRE INFLATED DIMENSIONS(mm) | LOAD INDEX | MAX.LOAD (kg) | SPEED RATING | STANDARD RIM | T.D. | |
S.W. | O.D. | SINGLE/DUAL | SINGLE/DUAL (kg) | |||||
11.00R20 | 16PR | 293 | 1085 | 150/147 | 3350/3075 | L | 8.0 | 17 |
11.00R20 | 18PR | 293 | 1085 | 152/149 | 3550/3250 | K | 8.0 | 17 |
11R22.5 | 14PR | 279 | 1054 | 144/142 | 2800/2650 | L | 8.25 | 17.5 |
11R22.5 | 16PR | 279 | 1054 | 146/143 | 3000/2725 | L | 8.25 | 17.5 |
12R22.5 | 14PR | 300 | 1085 | 146/143 | 3000/2725 | L | 9.00 | 18 |
12R22.5 | 16PR | 300 | 1085 | 150/147 | 3350/3075 | L | 9.00 | 18 |
12R22.5 | 18PR | 300 | 1085 | 152/149 | 3550/3250 | L | 9.00 | 18 |
12R22.5 | 18PR | 300 | 1085 | 152/149 | 3550/3250 | L | 9.00 | 18 |
295/80R22.5 | 16PR | 298 | 1044 | 150/147 | 3350/3075 | L | 9.00 | 18 |
295/80R22.5 | 18PR | 298 | 1044 | 152/149 | 3550/3250 | M | 9.00 | 18 |
315/80R22.5 | 18PR | 312 | 1076 | 154/151 | 3750/3450 | M | 9.00 | 18 |
315/80R22.5 | 20PR | 312 | 1076 | 157/154 | 4125/3750 | K | 9.00 | 18 |
315/80R22.5 | 20PR | 312 | 1076 | 156/150 | 4000/3350 | L | 9.00 | 18 |
RELATED PRODUCT BT369
TBR tyre is the short name of Truck and Bus Radial Tyre, so we cansee that TBR tyres are mainly used for Truck and Busvehicles, sometimes we also call TBR tyre as commercial tyre because the TBR tyres are used for commercial vehicles.Meanwhile, the TBR tyre’s structure is all steel wire, so the TBR tyre has better loading performance.
