11R22.5 BT212
fitting to TBR

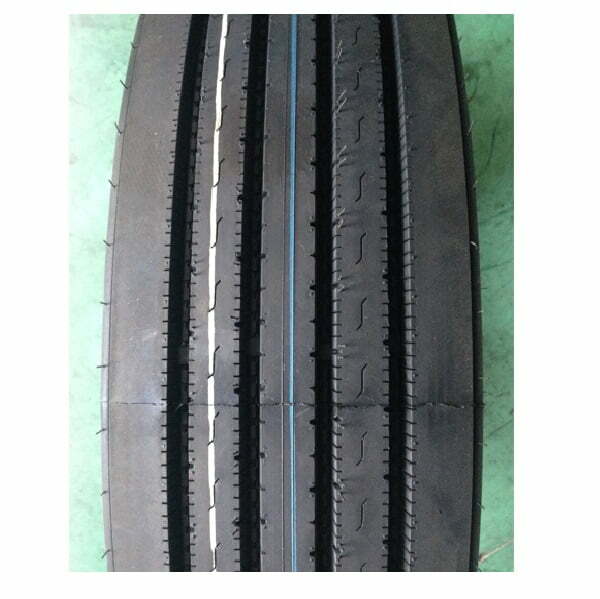

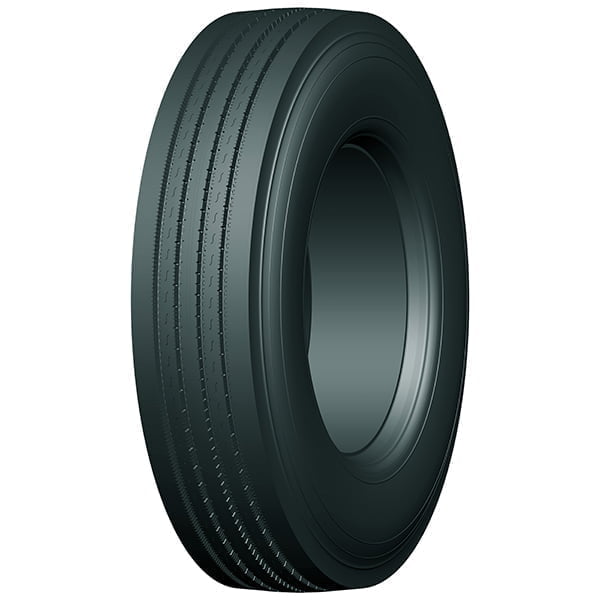

BOTO BT212 11R22.5
1. Mainly for long haul application of light truck and all position wheels on good road
2. For longitudinal grooves design exactly accords with quick movement feature of light truck
3. Low heating up compound ensures good wear resistance and fuel saving
4. Continuous pattern in shoulder avoids tire irregular wear
Specifications:
11R22.5 BOTO BT212
| SIZE | PR | NEW TYRE INFLATED DIMENSIONS(mm) | LOAD INDEX | MAX丄OAD (kg) | PRESSURE | SPEED RATING | STANDARD RIM | TREAD DEPTH (mm) | |
| SECTION WIDTH | OVERALL DIAMETER | SINGLE/DUAL | SINGLE/DUAL (kg) | SINGLE/DUAL (kpa) | |||||
| 11R22.5 | 14PR | 279 | 1054 | 144/142 | 2800/2650 | 720/720 | M | 8.25 | 14 |
| 11R22.5 | 14PR | 279 | 1054 | 144/142 | 2800/2650 | 720/720 | M | 8.25 | 14 |
| 11R22.5 | 16PR | 279 | 1054 | 146/143 | 3000/2725 | 830/830 | M | 8.25 | 14 |
| 11R22.5 | 16PR | 279 | 1054 | 146/143 | 3000/2725 | 830/830 | M | 8.25 | 14 |
| 11R22.5 | 16PR | 279 | 1054 | 146/143 | 3000/2725 | 830/830 | L | 8.25 | 14 |
| 11R24.5 | 14PR | 279 | 1104 | 146/143 | 3000/2725 | 720/720 | M | 8.25 | 14 |
| 11R24.5 | 14PR | 279 | 1104 | 146/143 | 3000/2725 | 720/720 | M | 8.25 | 14 |
| 11R24.5 | 16PR | 279 | 1104 | 149/146 | 3250/3000 | 830/830 | L | 8.25 | 14 |
| 11R24.5 | 16PR | 279 | 1104 | 149/146 | 3250/3000 | 830/830 | L | 8.25 | 14 |
| 12R22.5 | 18PR | 300 | 1085 | 152/149 | 3550/3250 | 930/930 | L | 9 | 17.5 |
| 12R22.5 | 18PR | 300 | 1085 | 152/149 | 3550/3250 | 930/930 | L | 9 | 17.5 |
| 255/70R22.5 | 14PR | 255 | 930 | 136/133 | 2240/2060 | 700/700 | M | 7.5 | 14 |
| 255/70R22.5 | 16PR | 255 | 930 | 140/137 | 2500/2300 | 800/800 | M | 7.5 | 14 |
| 255/70R22.5 | 16PR | 255 | 930 | 140/137 | 2500/2300 | 830/830 | M | 7.5 | 14 |
| 255/70R22.5 | 16PR | 255 | 930 | 140/137 | 2500/2300 | 830/830 | M | 7.5 | 14 |
| 285/75R24.5 | 14PR | 283 | 1050 | 144/141 | 2800/2575 | 760/760 | M | 8.25 | 14 |
| 285/75R24.5 | 14PR | 283 | 1050 | 144/141 | 2800/2575 | 760/760 | M | 8.25 | 14 |
| 285/75R24.5 | 16PR | 283 | 1050 | 147/144 | 3075/2800 | 830/830 | L | 8.25 | 14 |
| 285/75R24.5 | 16PR | 283 | 1050 | 147/144 | 3075/2800 | 830/830 | L | 8.25 | 14 |
| 295/75R22.5 | 14PR | 298 | 1014 | 144/141 | 2800/2575 | 760/760 | M | 9 | 14 |
| 295/75R22.5 | 14PR | 298 | 1014 | 144/141 | 2800/2575 | 760/760 | M | 9 | 14 |
| 295/75R22.5 | 16PR | 298 | 1014 | 146/143 | 3000/2725 | 830/830 | L | 9 | 14 |
| 295/75R22.5 | 16PR | 298 | 1014 | 146/143 | 3000/2725 | 830/830 | L | 9 | 14 |
