1.Mainly for drive axle on mix and bad road , such as construction road
2.With good grip performance

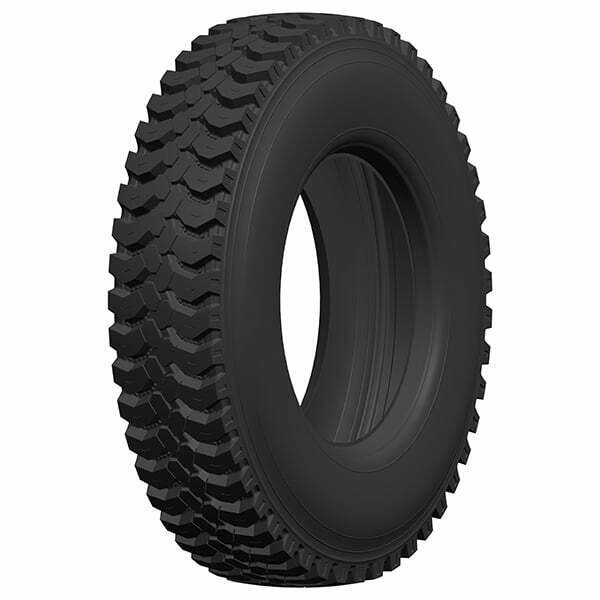

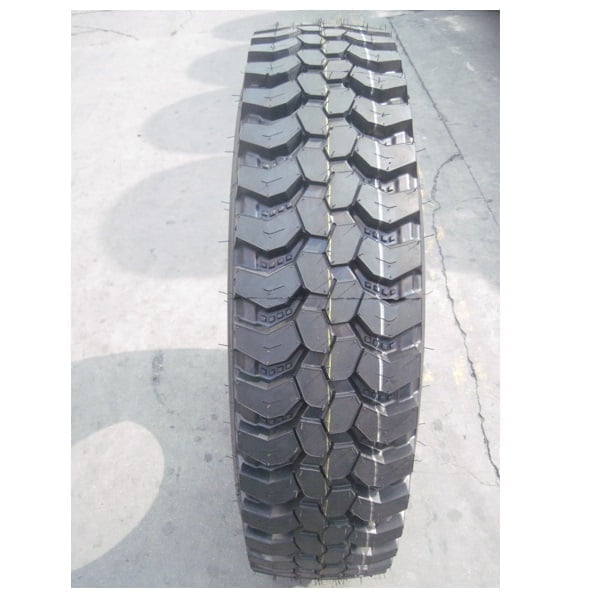

9.00R20 BOTO BT188
| SIZE | PR | NEW TYRE INFLATED DIMENSIONS(mm) | LOAD INDEX | MAX.LOAD (kg) | SPEED RATING | STANDARD RIM | T.D. | |
| S.W. | O.D. | SINGLE/DUAL | SINGLE/DUAL (kg) | |||||
| 9.00R20 | 14PR | 259 | 1019 | 141/139 | 2575/2430 | K | 7.0 | 17.5 |
| 9.00R20 | 16PR | 259 | 1019 | 144/142 | 2800/2650 | K | 7.0 | 17.5 |
| 10.00R20 | 16PR | 278 | 1054 | 146/143 | 3000/2725 | G | 7.5 | 19.5 |
| 10.00R20 | 18PR | 278 | 1054 | 149/146 | 3250/3000 | G | 7.5 | 19.5 |
| 11.00R20 | 16PR | 293 | 1085 | 150/147 | 3350/3075 | F | 8.0 | 22 |
| 11.00R20 | 18PR | 293 | 1085 | 152/149 | 3550/3250 | F | 8.0 | 22 |
| 12.00R20 | 18PR | 315 | 1125 | 154/151 | 3750/3450 | F | 8.5 | 22 |
| 12.00R20 | 20PR | 315 | 1125 | 156/153 | 4000/3650 | F | 8.5 | 22 |
| 11R22.5 | 14PR | 279 | 1054 | 144/142 | 2800/2650 | G | 8.25 | 24.5 |
| 11R22.5 | 16PR | 279 | 1054 | 146/143 | 3000/2725 | G | 8.25 | 24.5 |
| 11R24.5 | 14PR | 279 | 1104 | 146/143 | 3000/2725 | G | 8.25 | 24.5 |
| 11R24.5 | 16PR | 279 | 1104 | 149/146 | 3250/3000 | G | 8.25 | 24.5 |
| 12R22.5 | 18PR | 320 | 1124 | 154/151 | 3750/3450 | F | 9.75 | |
| 12R22.5 | 18PR | 320 | 1124 | 156/150 | 4000/3350 | G | 9.75 | |
| 12R22.5 | 18PR | 320 | 1124 | 156/150 | 4000/3350 | K | 9.75 | |
9.00R20 BT188
fitting to TBR
TBR tyre is the short name of Truck and Bus Radial Tyre, so we cansee that TBR tyres are mainly used for Truck and Busvehicles,sometimes we also call TBR tyre as commercial tyre because the TBR tyres are used for commercial vehicles.Meanwhile, the TBR tyre’s structure is all steel wire, so the TBR tyre has better loading performance.
