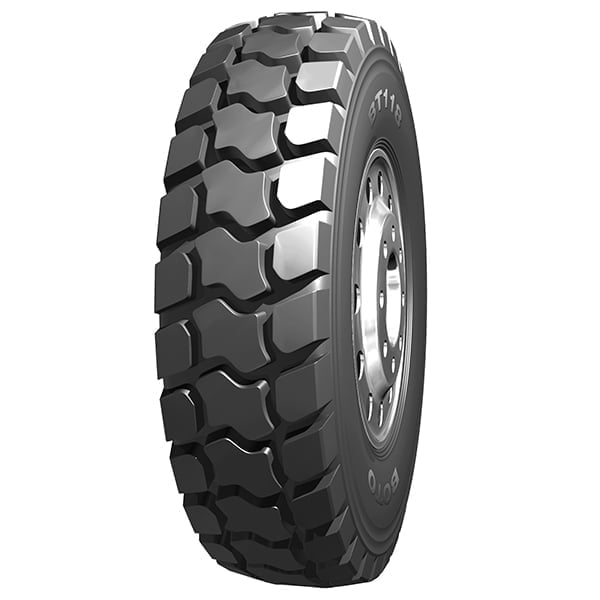

10.00R20 BT118
fitting to TBR
BOTO BT118 10.00R20
1. Mainly for rated load and long haul application of trailers
2.For high speed riding on good roads

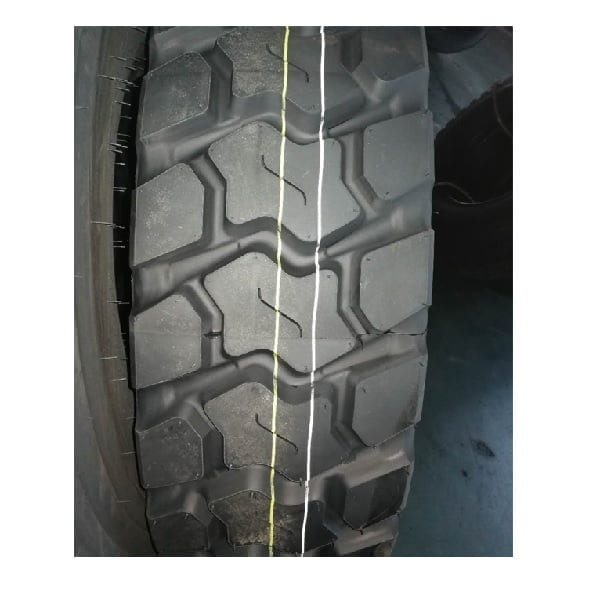

3.Straight main slots design enhances handling performance and service life
4.With high irregular wear resistance technology
Specifications:
10.00R20 BOTO BT118
| SIZE | PR | NEW TYRE INFLATED DIMENSIONS(mm) | LOAD INDEX | MAX.LOAD (kg) SINGLE/DUAL (kg) | PRESSURE SINGLE/DUAL (kpa) | SPEED RATING | STANDARD RIM | TREAD DEPTH (mm) | |
| SECTION WIDTH | OVERALL DIAMETER | SINGLE/DUAL | |||||||
| 10.00R20 | 16PR | 278 | 1054 | 146/143 | 3000/2725 | 830/830 | F | 7.5 | 21 |
| 10.00R20 | 18PR | 278 | 1054 | 149/146 | 3250/3000 | 930/930 | F | 7.5 | 21 |
| 10.00R20 | 18PR | 278 | 1054 | 149/146 | 3250/3000 | 930/930 | K | 7.5 | 21 |
| 11.00R20 | 16PR | 293 | 1085 | 150/147 | 3350/3075 | 830/830 | F | 8 | 22 |
| 11.00R20 | 18PR | 293 | 1085 | 152/149 | 3550/3250 | 930/930 | F | 8 | 22 |
| 12.00R20 | 18PR | 315 | 1125 | 154/151 | 3750/3450 | 830/830 | F | 8.5 | 22 |
| 12.00R20 | 20PR | 315 | 1125 | 156/153 | 4000/3650 | 900/900 | F | 8.5 | 22 |
RELATED PRODUCT BT118
Boto brand truck tire big block pattern for mining ore area
TBR tyre is the short name of Truck and Bus Radial Tyre, so we can see that TBR tyres are mainly used for Truck and Busvehicles,sometimes we also call TBR tyre as commercial tyre because the TBR tyres are used for commercial vehicles. Meanwhile, the TBR tyre’s structure is all steel wire, so the TBR tyre has better loading performance.
