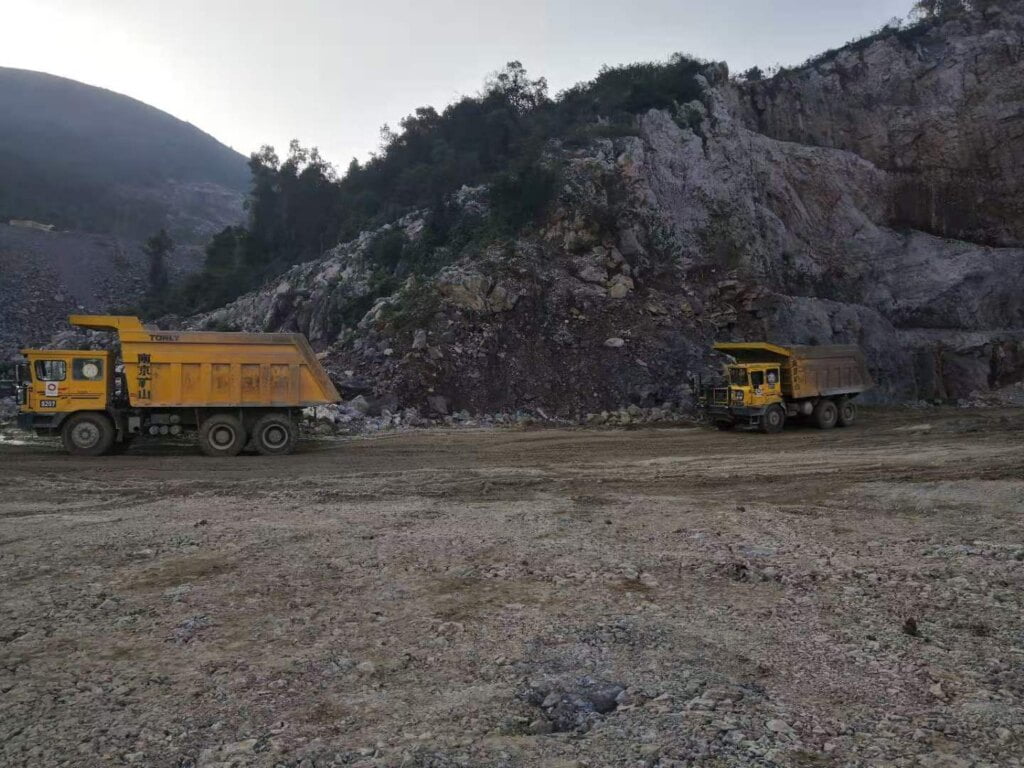

Advantage of Wide-body dump truck tires
Wide–body dump truck, it is between large mining dump truck and ordinary dump truck, neither like large mining dump truck, which is often cost millions, nor unlike ordinary dump truck in the mining area operation stability is poor. Wide-body dump trucks are more like the “strengthened” type of ordinary dump trucks in structure, and because of their characteristics of large one-time loading, high transportation efficiency and good profitability, they are welcomed by large mining areas and gradually recognized and approved by users.

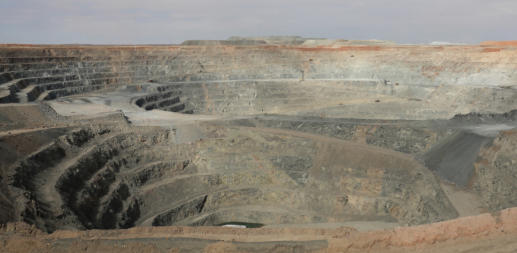

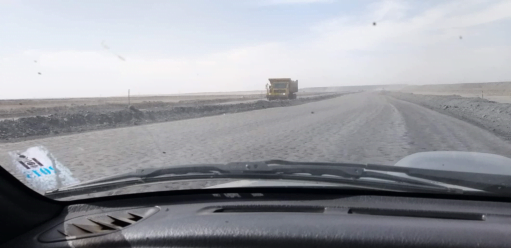

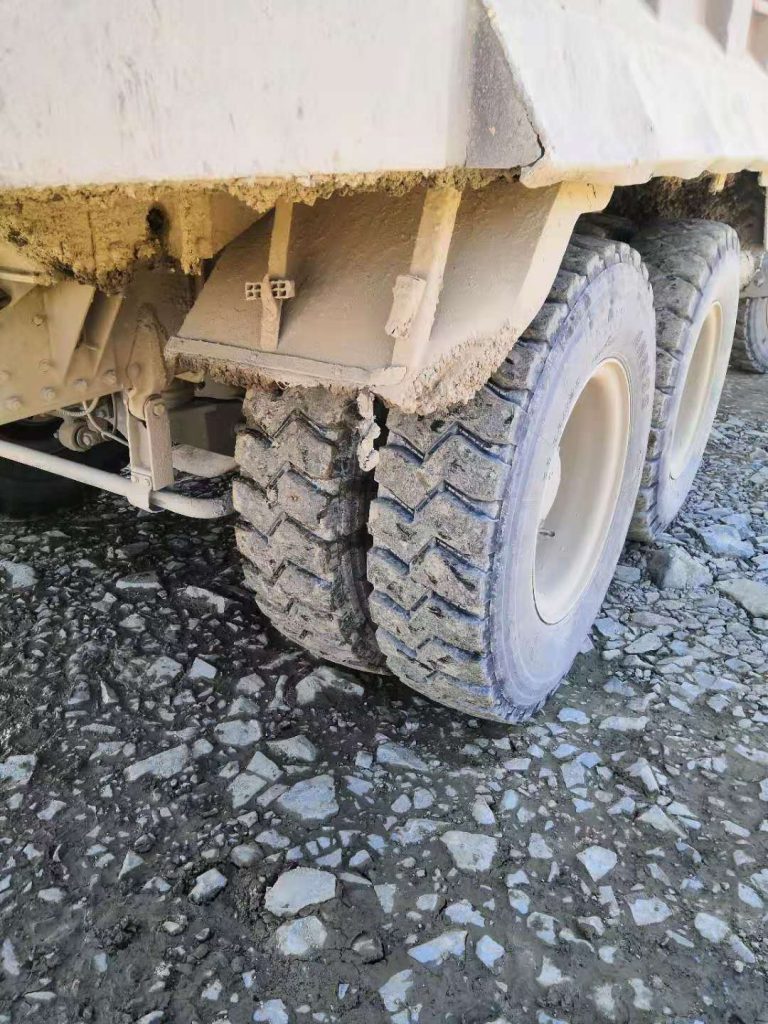

Generally, the road conditions in mining areas are relatively bad, especially in rainy and snowy weather, dust will make the road slippery and muddy, and ordinary dump tires are difficult to drive on ramps. Therefore, wide-body dump truck tires are required to have wider driving surface, and enjoy strong grip performance, good cut-resistance and penetrate-resistance performance, stronger load capacity.
14.00R25 is the most popular size
Famous brands and patterns available for 14.00R25
| Item | Brand | Size | Pattern | TRA | Tread Depth |
| 1 | AEOLUS | 14.00R25 | AE33/RT | E3 | 26mm |
| 2 | 14.00R25 | AE35 | E3 | 25mm | |
| 3 | 14.00R25 | AE310 | E3 | 26mm | |
| 4 | 14.00R25 | AE401 | E4 | 36mm | |
| 5 | 16.00R25 | AE33 | E3 | 33mm | |
| 6 | 16.00R25 | AE35 | E3 | 36mm | |
| 7 | 16.00R25 | AE401 | E4 | 45mm | |
| 8 | 16.00R25 | AE313 | E3 | 27mm | |
| 9 | HILO | 14.00R25 | LOFN | E3 | 28mm |
| 10 | 14.00R25 | LOFN16 | E3 | 28mm | |
| 11 | 14.00R25 | AN609 | E3 | 28mm | |
| 12 | 14.00R25 | LGXN2 | E4 | 34mm | |
| 13 | 14.00R25 | LOFN2 | E4 | 34mm | |
| 14 | 14.00R25 | LOFN26 | E4 | 40mm | |
| 15 | 14.00R25 | AN6092 | E4 | 40mm | |
| 16 | 16.00R25 | BGZN | E2 | 28mm | |
| 17 | 16.00R25 | BYHN | E3 | 28mm | |
| 18 | 16.00R25 | B02NT | E3 | 34mm | |
| 19 | 16.00R25 | BGFN | E3 | 34mm | |
| 20 | 16.00R25 | B02S | E4 | 44mm | |
| 21 | 16.00R25 | BDTS | E4 | 46mm | |
| 22 | CHENGSHAN | 14.00R25 | ET01 | E3 | 27mm |
| 23 | 14.00R25 | ET03 | E3 | 26mm | |
| 24 | 14.00R25 | ET16 | E4 | 37mm | |
| 25 | 16.00R25 | ET02 | E3 | 33mm | |
| 26 | 16.00R25 | ET16 | E4 | 43mm | |
| 27 | Triangle | 14.00R25 | TB516S | E4 | 36mm |
| 28 | 14.00R25 | TL569 | E3 | 26mm | |
| 29 | 14.00R25 | TB526 | E3 | 26mm | |
| 30 | 16.00R25 | TB516S | E4 | 54.2 | |
| 31 | 16.00R25 | TL558S | E4 | 64.3 | |
| 32 | Advance | 14.00R25 | GLR12 | E3 | 26mm |
| 33 | 14.00R25 | GLR09 | E4 | 38mm | |
| 34 | 16.00R25 | GLR09 | E4 | 43mm | |
| 35 | MAXAM | 14.00R25 | MS401 | E4 | 37mm |
| 36 | TIANLI | 14.00R25 | TUE303 | E3 | 27mm |
| 37 | 14.00R25 | TUE303 II | E3 | 27mm | |
| 38 | 14.00R25 | TUE333 | E3 | 27mm | |
| 39 | 14.00R25 | TUE401 | E4 | 38mm | |
| 40 | 14.00R25 | TUE401 II | E4 | 38mm | |
| 41 | 16.00R25 | TUE303 | E3 | 32mm | |
| 42 | 16.00R25 | TUE303S | E3 | 34mm | |
| 43 | 16.00R25 | TUE303 II | E3 | 34mm | |
| 44 | 16.00R25 | TUE333 | E3 | 34mm | |
| 45 | 16.00R25 | TUE401 | E4 | 38mm | |
| 46 | 16.00R25 | TUE401 II | E4 | 44mm | |
| 47 | 16.00R25 | TUE666 | E3 | 29mm | |
| 48 | 16.00R25 | TUE555 | E4 | 46mm | |
| 49 | BOTO | 14.00R25 | GCB5 | E3 | 30mm |
| 50 | 14.00R25 | E4 | 36mm | ||
| 51 | 14.00R25 | E919 | E3 | 30mm | |
| 52 | 14.00R25 | E929 | E3 | 28mm | |
| 53 | 14.00R25 | GCB9 | E4 | 36mm | |
| 54 | 14.00R25 | GCD1 | E4 | 40mm | |
| 55 | 16.00R25 | GCB5 | E4 | 45mm | |
| 56 | LINGLONG | 14.00R25 | LDO993+ | E3 | 27mm |
| 57 | 14.00R25 | DM669 | E3 | 27mm | |
| 58 | 14.00R25 | DM668 | E3 | 27mm | |
| 59 | 14.00R25 | DM668+ | E4 | 37mm | |
| 60 | 16.00R25 | LDO993+ | E3 | 31mm | |
| 61 | 16.00R25 | DM668+ | E4 | 42mm | |
| 62 | Zhongce | 14.00R25 | CB765 | E3 | 27mm |
| 63 | 14.00R25 | CB793 | E3 | 31mm | |
| 64 | 14.00R25 | CB793A | E3 | 27mm | |
| 65 | 14.00R25 | CB393 | E3 | 27mm | |
| 66 | 14.00R25 | CB771 | E4 | 38mm | |
| 67 | 14.00R25 | CB771A | E4 | 38mm | |
| 68 | 14.00R25 | CB395 | E3 | 27mm | |
| 69 | 14.00R25 | CB397 | E3 | 27mm | |
| 70 | 16.00R25 | CB208 | E2 | 29mm | |
| 71 | 16.00R25 | CB395 | E3 | 34mm | |
| 72 | 16.00R25 | CB397 | E3 | 34mm | |
| 73 | 16.00R25 | CB771 | E4 | 44mm |
AEOLUS
AE33
AE35
AE310
AE401
HILO
LOFN/LOFN2
LOFN16/LOFN26
AN609/AN6092
LGXN2
CHENGSHAN
ET01
ET03
ET16
Triangle
TB516S
TL569
TB526
Advance
GLR12
GLR09
MAXAM
MS401
TIANLI
TUE303
TUE303 II
TUE333
TUE401
TUE401II
BOTO
GCB5
E919
E929
GCB9
GCD1
LINGLONG
LDO993+
DM669
DM668
DM668+
Zhongce
CB765
CB793 CB793A
CB771 CB771A
CB393
CB395
CB397
Common compound available：
Cut Resistance & Heat Resistance
Different Patterns(TRA) & Different Compounds for different Mining sites/road conditions:
Heat Resistance compound are commonly used.
E4 Normally for gold or iron mine sites, short haul, bad road condition, with lower speed.
Cut Resistance in winter is often used
Heat Resistance in summer if longer transport distance
Machine model use this size:
| Machine Brand | Model |
| TONLY | TL87 TL875 TL98 TL85 TLD |
| Tai’an Aerospace | TAS3750 TAS3731 |
| SANY | SKT90MT |
| LGMG | MT60 MT86 MT86H |
| 陕汽通力 | 矿威70 矿威90 |
| 一拖神通 | LK3550K |
| 山东蓬翔 | PX65MT PX65AT PX75MT PX75YQF |
| 中国重汽 | ZZ5707S3842AJ |
Main market using these kinds of tires:
⨠China
⨠Mongolia
⨠Vietnam
Future trends：
16.00R25
480/95R29
16.00R29
