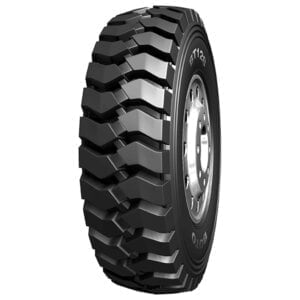

BT128
1.Mainly for drive axle on mining and bad roads with low speed

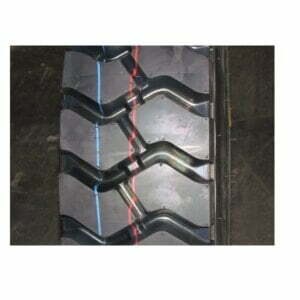

2.Excellent traction with big block pattern design
3.Special compound supply anti crack and anti puncture performance
4.Good performance on carrying capacity
Specifications:
| SIZE | PR | NEW TYRE INFLATED DIMENSIONS(mm) | LOAD INDEX | MAX.LOAD (kg) | SPEED RATING | STANDARD RIM | T.D. | |
| S.W. | O.D. | SINGLE/DUAL | SINGLE/DUAL (kg) | |||||
| 9.00R20 | 16PR | 259 | 1054 | 146/143 | 3000/2725 | F | 7.5 | 21 |
| 9.00R20 | 16PR | 259 | 1054 | 149/146 | 3250/3000 | F | 7.5 | 21 |
| 10.00R20 | 16PR | 278 | 1054 | 149/146 | 3250/3000 | K | 7.5 | 21 |
| 10.00R20 | 18PR | 278 | 1085 | 150/147 | 3350/3075 | F | 8.0 | 22 |
| 11.00R20 | 16PR | 293 | 1085 | 152/149 | 3550/3250 | F | 8.0 | 22 |
| 11.00R20 | 18PR | 293 | 1125 | 154/151 | 3750/3450 | F | 8.5 | 22 |
| 12.00R20 | 20PR | 315 | 1125 | 156/153 | 4000/3650 | F | 8.5 | 22 |
