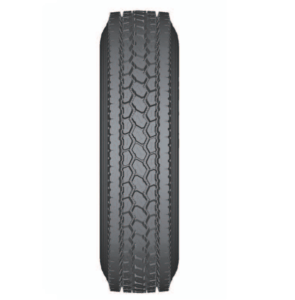

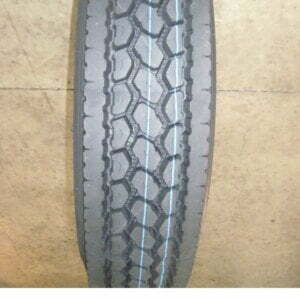

BT566
1. Drive application for long haul and regional haul service
2. Deep tread depth helps to provide long original life
3. Aggressive tread pattern design helps to provide excellent traction
4. Continuous shoulder ribs to fight irregular wear
Specifications:
| SIZE | PR | NEW TYRE INFLATED DIMENSIONS(mm) | LOAD INDEX | MAX.LOAD (kg) | SPEED RATING | STANDARD RIM | T.D. | |
| S.W. | O.D. | SINGLE/DUAL | SINGLE/DUAL (kg) | |||||
| 11R22.5 | 14PR | 279 | 1054 | 144/142 | 2800/2650 | L | 8.25 | 22.5 |
| 11R22.5 | 16PR | 279 | 1054 | 146/143 | 3000/2725 | L | 8.25 | 22.5 |
| 11R24.5 | 14PR | 279 | 1104 | 146/143 | 3000/2725 | L | 8.25 | 22.5 |
| 11R24.5 | 16PR | 279 | 1104 | 149/146 | 3250/3000 | L | 8.25 | 22.5 |
| 285/75R24.5 | 14PR | 283 | 1050 | 144/141 | 2800/2575 | L | 8.25 | 22.5 |
| 285/75R24.5 | 16PR | 283 | 1050 | 147/144 | 3075/2800 | L | 8.25 | 22.5 |
| 29575R22.5 | 14PR | 298 | 1014 | 144/141 | 2800/2575 | L | 9.00 | 22.5 |
